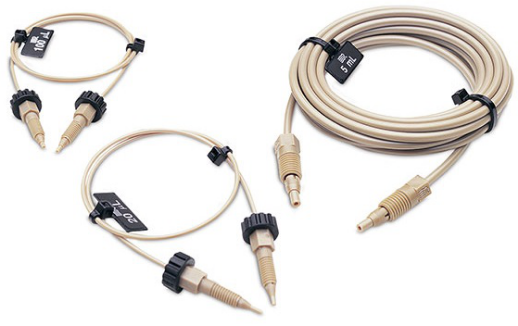

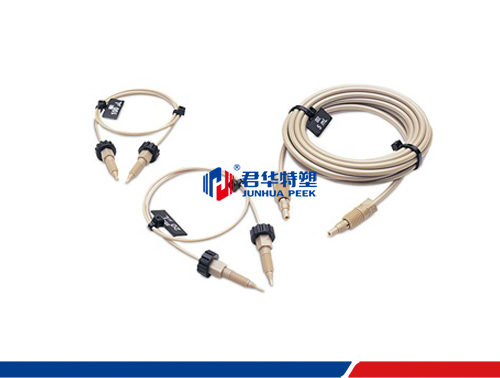

PEEK loop

https://en.chinapeek.com/uploadfiles/107.151.154.88/webid389/source/201907/156282255190.jpg

PEEK loop

Product introduction:

PEEK loops are widely used in injection valves of various sizes, and have the advantages of corrosion resistance, hydrolysis resistance and ease of use compared to stainless steel loops.

订货号 Part Number	规格型号 Spec.	*内径外径 IDOD*
JHDLH-05	5μL	0.18 mm (0.007”) ID x 1/16” OD
JHDLH-10	10μL	0.30 mm (0.012”) ID x 1/16” OD
JHDLH-20	20μL	0.30 mm (0.012”) ID x 1/16” OD
JHDLH-50	50μL	0.51 mm (0.020”) ID x 1/16” OD
JHDLH-100	100μL	0.51 mm (0.020”) ID x 1/16” OD
JHDLH-200	200μL	0.76 mm (0.030”) ID x 1/16” OD
JHDLH-500	500μL	0.76 mm (0.030”) ID x 1/16” OD
JHDLH-1.0	1.0mL	0.76 mm (0.030”) ID x 1/16” OD
JHDLH-5.0	5.0mL	1.0 mm (0.040”) ID x 1/16” OD
