JHZT-1608 One-Piece Fitting with Biochip
https://en.chinapeek.com/uploadfiles/107.151.154.88/webid389/source/201907/156281904360.jpg

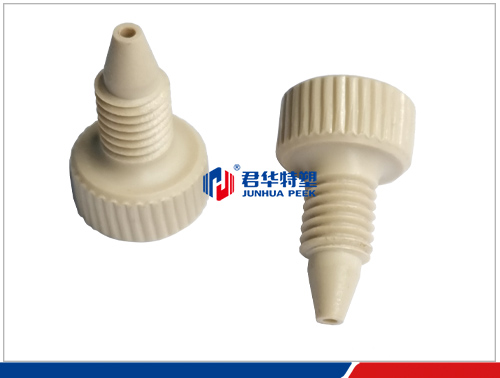

JHZT-1608 One-Piece Fitting with Biochip

lUsed with JHSW-77, could through the wall.

lConvenient, Reusable

lGeneral pressure resistance

lOne-Piece design without ferrule

lFor 1.6mm OD Capillary

lWide application, high temperature resistance, corrosion resistance

Spec.


 Part Number

JHZT-1608

Material/Color

 PEEK Natural

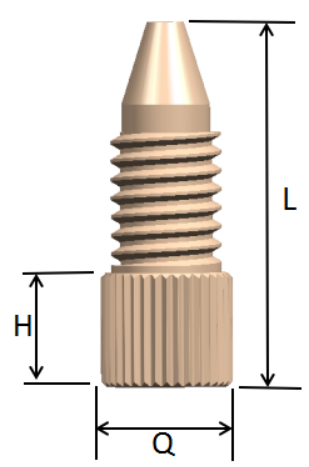

Total length: L

18.5mm

Diameter of hand tight part

6.2mm

Length of hand tight part

6.9mm

thread specification

10-32UNF

 Knurling

0.5

For capillary

1/16”

Max. Pressurization

20Mpa（200bar）
