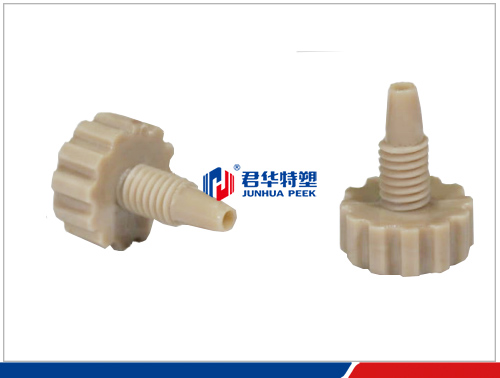

JHZT-1606 One-Piece Fitting
https://en.chinapeek.com/uploadfiles/107.151.154.88/webid389/source/201907/156281574419.jpg

JHZT-1606

One-Piece Fitting


lBigger knurling, Easy locking

lReusable

lHigh pressure resistance

lOne-Piece design without ferrule

lFor 1.6mm OD Capillary

lWide application, high temperature resistance, corrosion resistance

Spec

Part Number

JHYT-1606

Material/Color

PEEK Natural/Black

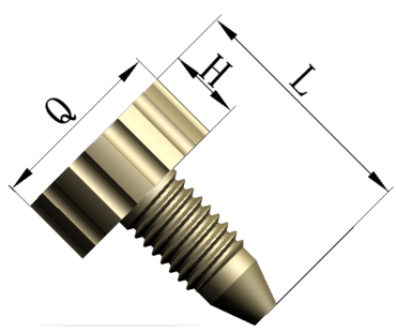

 Total length:L

16mm

Diameter of hand tight part：Q

11.8mm

Length of hand tight part：H

4.9mm

hread specification

10-32UNF


Knurling

2.8

Bigger knurling

For capillary

1/16”

Max. Pressurization

25Mpa（250bar）
