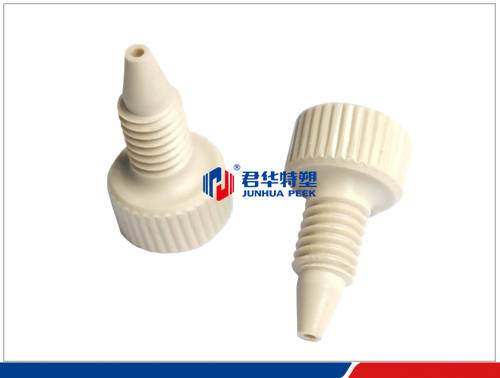

JHZT-1604 One-Piece Fitting
https://en.chinapeek.com/uploadfiles/107.151.154.88/webid389/source/201907/156281884753.jpg

JHZT-1604 One-Piece Fitting

Extended type, for multi-ways or valve head with small spacing

Convenient, Reusable

High pressure resistance

One-Piece design without ferrule

For 1.6mm OD Capillary

Wide application, high temperature resistance, corrosion resistance

Spec

Part Number

JHYT-1604

Material/Color

PEEK Natural/Black

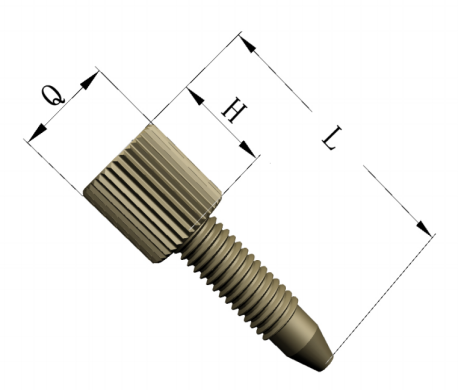

 Total length:L

26.5mm

iameter of hand tight partQ

8.7mm

Length of hand tight partH

9mm

Knurling

0.8

Standard  Knurling

For capillary

1/16

Max. Pressurization

25Mpa(250bar
