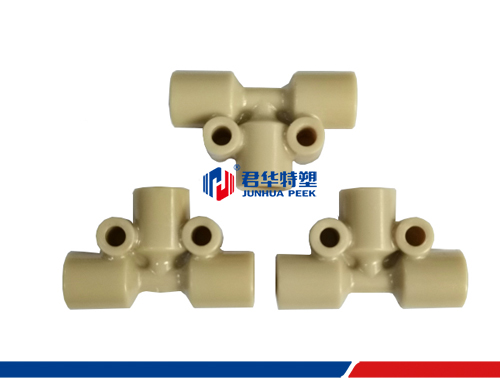

JHST-02 tee connector
https://en.chinapeek.com/uploadfiles/107.151.154.88/webid389/source/201907/156282209871.jpg

JHST-02 tee connector。

lReserve fixed hole position

lInner hole tube 1/16'' to 1/16'' to 1/16''

lhigh temperature resistance, corrosion resistance, high strength

lCan be combined with a variety of two-piece or one-piece fitting

 Spec.


零件号Part Number

JHST-02

Material/Color



PEEK本色PEEK natural

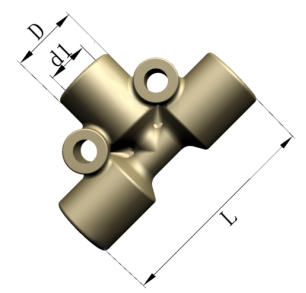

Total length

27.7mm

 OD

9.3mm

Inner thread specification

3个10-32UNF

Capillary size

1/16” 转 1/16”转1/16”

 Max. Pressurization

25Mpa（250bar）
