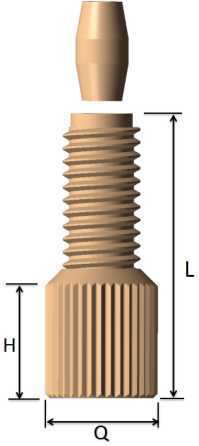

JHFTS-3 Split double-head fastening
https://en.chinapeek.com/uploadfiles/107.151.154.88/webid389/source/201907/156281937593.jpg

JHFTS-3 Split double-head fastening

lThe two points of the double head are locked. More pressure resistant than ordinary firtting.

lEconomically, just replace the ferrule

lMachining type with high purity PEEK

lFor 1.6mm OD Capillary

lWide application, high temperature resistance, corrosion resistanc

 Spec.


Part Number

JHFTS-3


Material/Color


PEEK Natural

 Total length

22mm


Diameter of hand tight part

8.5mm

hread specification

10-32 UNF

 for capillary

1/16”

 Max. Pressurization

48Mpa(480bar


umber of supporting ferrule

JHRH-08
