JHFTS-2 Split double-head fastening
https://en.chinapeek.com/uploadfiles/107.151.154.88/webid389/source/201907/156281930835.jpg

JHFTS-2 Split double-head fastening

     The two points of the double head are locked. More pressure resistant than ordinary firtting.

Economically, just replace the ferrule

lMachining type with high purity PEEK

For 1.6mm OD Capillary

lWide application, high temperature resistance, corrosion resistance


Spec.


Part Number

JHFTS-2

Material/Color

  PEEK Natural

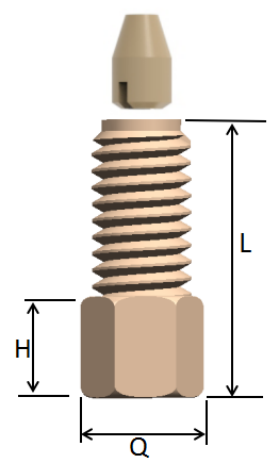

Total length

22mm

Hex across flat, Hex across corner

9.2mm

Hex length

7.5mm

thread specification

10-32 UNF

for capillary

1/16”

Max. Pressurization

    50Mpa(500bar

Number of supporting ferrule

JHRH-09
