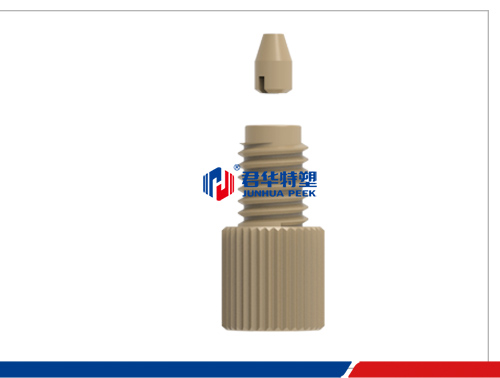

JHFTS-1 split connector
https://en.chinapeek.com/uploadfiles/107.151.154.88/webid389/source/201907/156281922438.jpg

JHFTS-1 split connector

The two points of the double head are locked. More pressure resistant than ordinary firtting.

lEconomically, just replace the ferrule

lMachining type with high purity PEEK

lWide application, high temperature resistance, corrosion resistance

 Spec


Part Number

JHFTS-1

Material/Color

     PEEK Natural

Total length

22mm

Diameter of hand tight part

8.5mm

Length of hand tight part

7.5mm

thread specification

10-32 UNF

for capillary

1/16”

Knurling

1

Max. Pressurization

50Mpa(500bar

Number of supporting ferrule

JHRH-09
