JunHua chinaPEEK

JHFT-805 Split Connector

JHFT-805 Split Connector

lEconomically, just replace the ferrule

lTurn over the ferrule for reuse.

l High pressure resistance

linjection molding with high purity PEEK

lFor 3.2mm OD Capillary

l。Wide application, high temperature resistance, corrosion resistance

*Spec.*
Part Number	JHFT-805
Material/Color	PEEK Natural

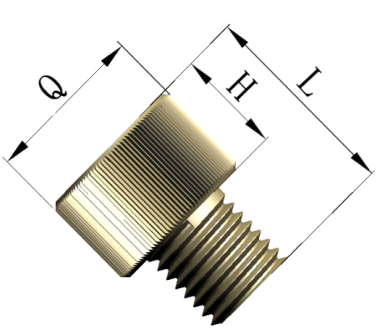

Total length:L	16mm
Diameter of hand tight part	12.8mm
Length of hand tight part	8.3mm
Thread specification	5/16-24 UNF
手拧部滚花 Knurling	0.3
适合连接毛细管 For capillary	1/8”
Max. Pressurization	30Mpa（300bar）
Number of supporting ferrule	JHRH-07
