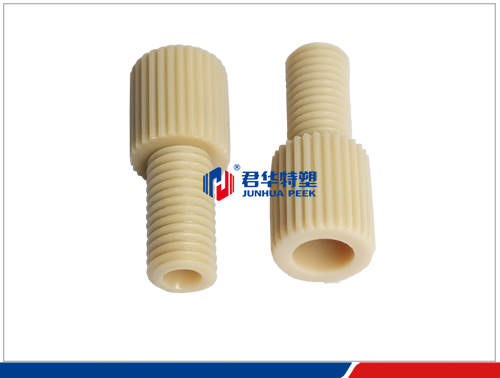

JHFT-802 Split Connector

JHFT-802 Split Connector

lEconomically, just replace the ferrule

lTurn over the ferrule for reuse.

lGood pressure resistance, metric thread.

lInjection molding

lFor 3.2mm OD Capillary

lWide application, high temperature resistance, corrosion resistance

*pec.*
Part Number	JHFT-802
Material/Color	PEEK Natural

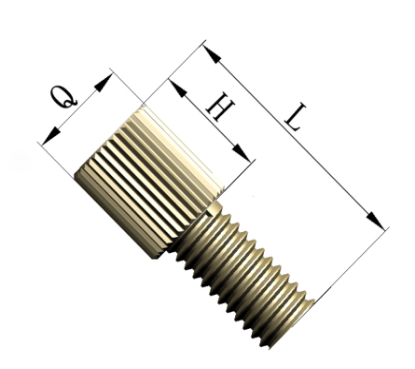

Total length:L	22mm
Diameter of hand tight part	9.2mm
Length of hand tight part	10mm
Thread specification	1/4-28UNF
Knurling	1
For capillary	1/8”
Max. Pressurization	25Mpa（250bar）
Number of supporting ferrule	JHRH-06
