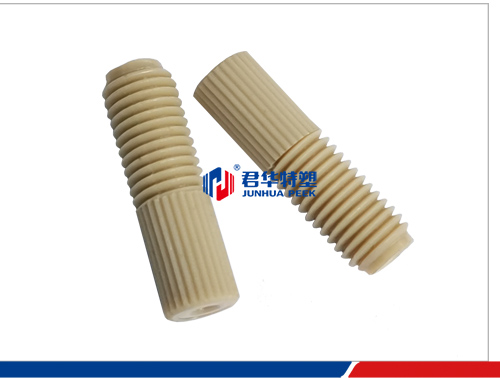

JHFT-1611 split connectorsplit

JHFT-1611 split connectorsplit

lEconomically, just replace the ferrule

lTurn over the ferrule for reuse.

lHigh pressure resistance

linjection molding with high purity PEEK

lWide application, high temperature resistance, corrosion resistance

*Spec.*
Part Number	JHFT-1611
Material/Color	PEEK Natural

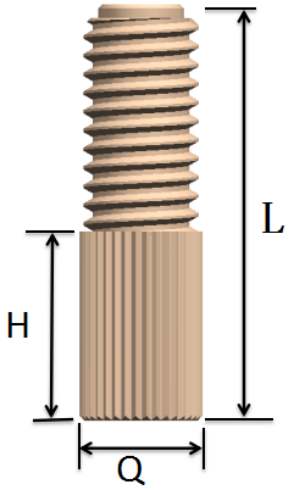

Total length	21.8mm
Diameter of hand tight part	6.15mm
H:Length of hand tight part	9.6mm
:thread specification	1/4-28UNF
for capillary	1/16”
Knurling	0.8
Max. Pressurization	30Mpa（300bar）
Number of supporting ferrule	JHRH-01
