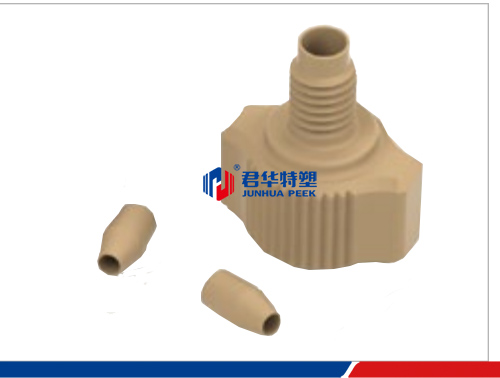

JHFT-1610 Split Connector
https://en.chinapeek.com/uploadfiles/107.151.154.88/webid389/source/201907/156281526317.jpg

JHFT-1610 Split Connector

lEconomically, just replace the ferrule

lTurn over the machining Type ferrule

l High pressure resistance

lMachining type with high purity PEEK

lFor 3.2mm OD Capillary

lWide application, high temperature resistance, corrosion resistance


 Spec.


 Part Number

JHFT-1610


Material/Color


PEEK Natural

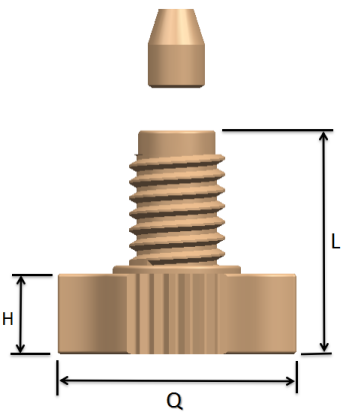

Total length L

18mm


Diameter of hand tight part

15mm


Length of hand tight part

6mm

Thread specification

10-32 UNF

For capillary

1/16”或1/32

 Max. Pressurization

30Mpa(300bar

 Number of supporting ferrule

JHRH-09
