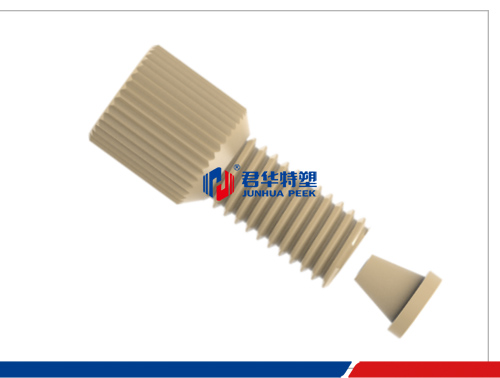

JHFT-1609 Split Connector
https://en.chinapeek.com/uploadfiles/107.151.154.88/webid389/source/201907/15628153708.jpg

JHFT-1609 Split Connector

lEconomically, just replace the ferrule

lTurn over the machining Type ferrule

l High pressure resistance

lMachining type with high purity PEEK

lFor 3.2mm OD Capillary

lWide application, high temperature resistance, corrosion resistance

 Spec.


Material/Color

PEEK Natural

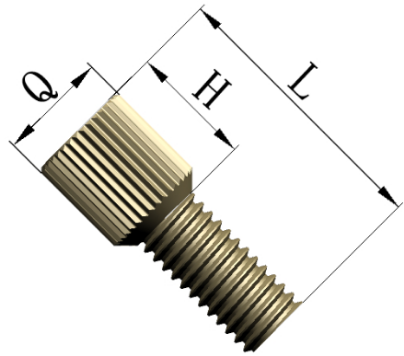

 Total length L

22mm


Diameter of hand tight part

9.05mm


Length of hand tight part

10mm

Thread specification

10-32 UNF

 For capillary

1/16”

Knurling

1

 Max. Pressurization

35Mpa(350bar

Number of supporting ferrule

JHRH-02
