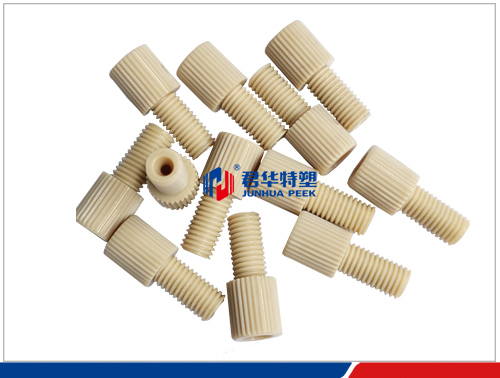

JHFT-1601 Split Connector
JHFT-1601 Split Connector
lEconomically, just replace the ferrule
lTurn over the ferrule for reuse.
lHigh pressure resistance
lFor 1.6mm OD Capillary
lWide application, high temperature resistance, corrosion resistance
Spec. | |
Part Number | JHFT-1601 |
Material/Color | PEEK Natural |

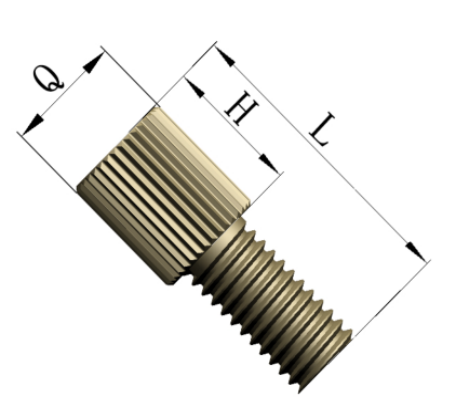

Total length | 22mm |
Diameter of hand tight part | 9.0mm |
H Length of hand tight part | 10mm |
Thread specification | 1/4-28 UNF |
Knurling | 1 |
For capillary | 1/16” |
Max. Pressurization | 28Mpa（280bar） |
Number of supporting ferrule | JHRH-01 |
