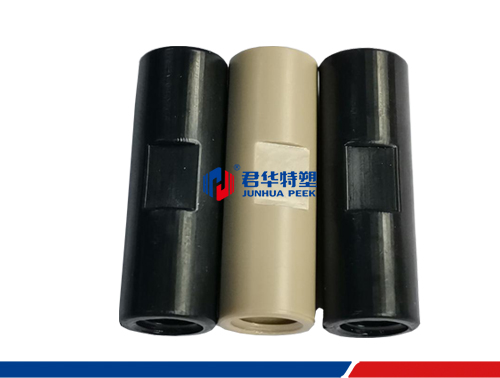

JHET-03 two way connecter
https://en.chinapeek.com/uploadfiles/107.151.154.88/webid389/source/201907/15628216278.jpg

JHET-03 two way connecter

l Inner hole tube 1/16'' to 1/8"

lhigh temperature resistance, corrosion resistance, high strength

lCan be combined with a variety of two-piece or one-piece fitting

Part Number

JHET-03

Material/Color

PEEK本色natural

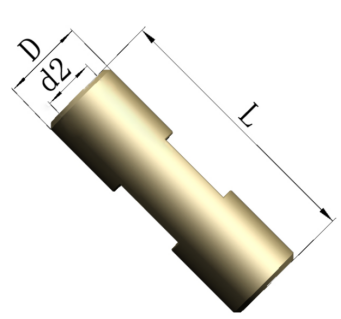

Total length

27.6mm

OD

8.7mm

thread specification

  内螺纹1/4-28UNF转1/4-28UNF

Max. Pressurization

30Mpa（300bar）
