JHET-02 two way connector

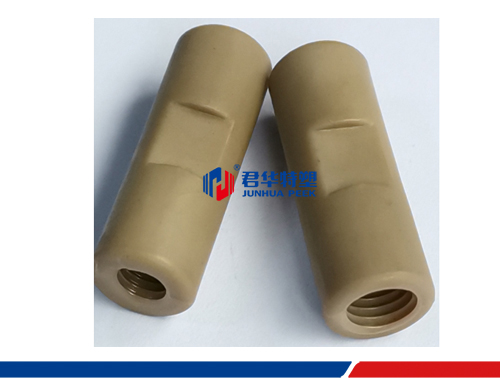

https://en.chinapeek.com/uploadfiles/107.151.154.88/webid389/source/201907/156282155510.jpg

JHET-02 two way connector

l Inner hole tube 1/16'' to 1/8"

lhigh temperature resistance, corrosion resistance, high strength

lCan be combined with a variety of two-piece or one-piece fitting

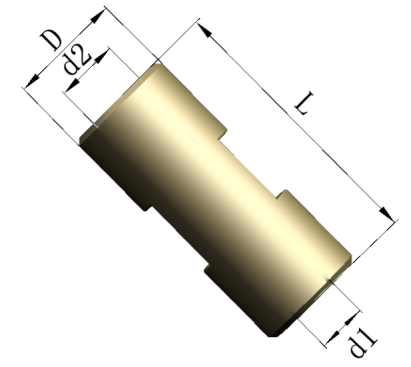

Spec.


Part Number

JHET-02

Material/Color

PEEK natural

Total length

24mm

OD

10mm

thread specification

  内螺纹10-32UNF转1/4-28UNF

Max. Pressurization

30Mpa（300bar）
