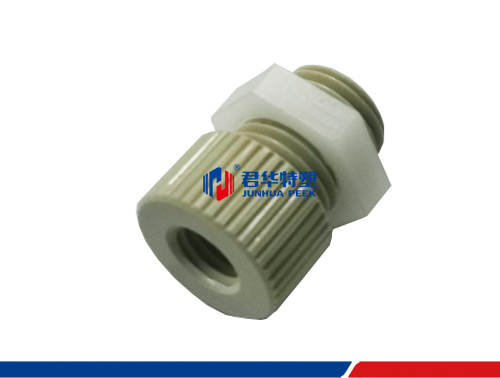

JHCQ-03 Wall feed-through

JHCQ-03 Wall feed-through
lcan be used for though-wall with POM nut
lInner hole tube 1/8'' to 1/8"
lhigh temperature resistance, corrosion resistance, high strength
lCan be combined with a variety of two-piece or one-piece fitting
Spec. | |
Part Number | JHCQ-03 |
Material/Color | PEEK本色/白色POM |
Total length | 17.5mm |
Diameter of hand tight part | 12.7mm |
Length of hand tight part | 7.5mm |
Number of supporting ferrule | JHRH-03 |
Max. Pressurization | 35Mpa(350bar) |
