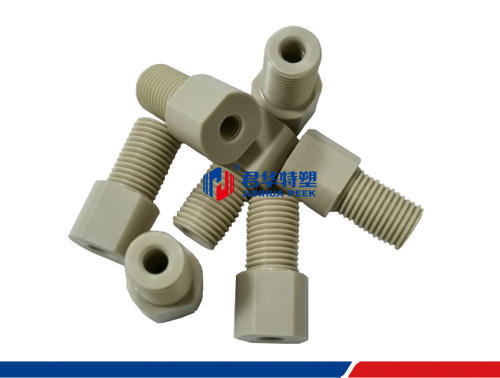

JHCQ-01 Wall feed-through
https://en.chinapeek.com/uploadfiles/107.151.154.88/webid389/source/201907/156282116523.jpg

       JHCQ-01 Wall feed-through

can be used for though-wall with POM nut

match for 1/16'' tubing

high temperature resistance, corrosion resistance, high strength

Can be combined with a variety of two-piece or one-piece fitting

Spec


Part Number

JHCQ-01

Material/Color

      PEEK natural

 Total length

25mm

Dameter of hand tight part

12.8mm

Length of hand tight part

11mm

thread specification

外螺纹3/8-24UN Outer thread 内螺纹2个10-32UNF Inner thread 2pcs

Max. Pressurization

35Mpa（350bar）

Number of supporting ferrule

JHRH-01
