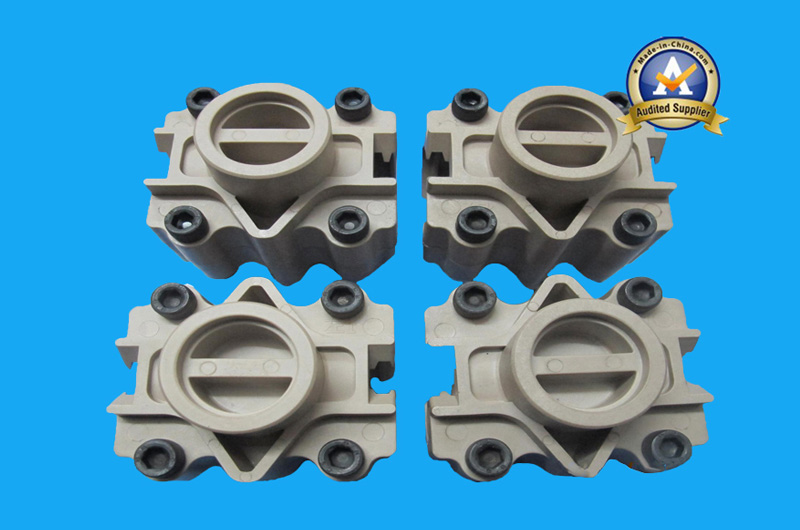

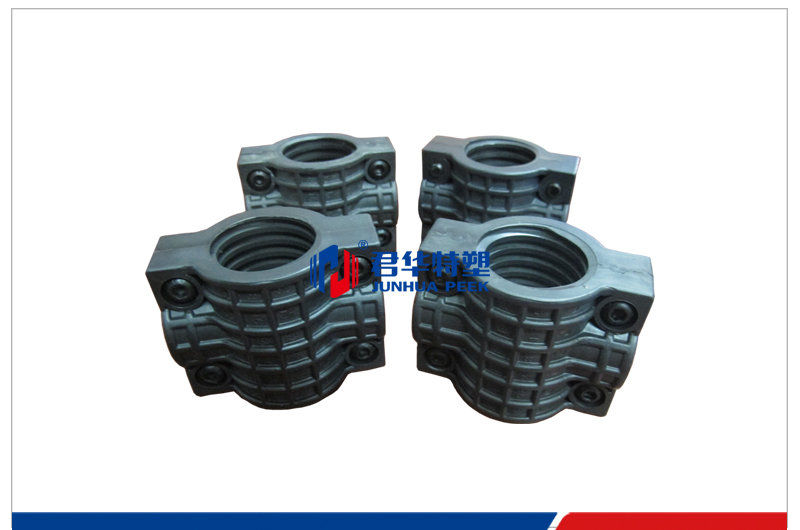

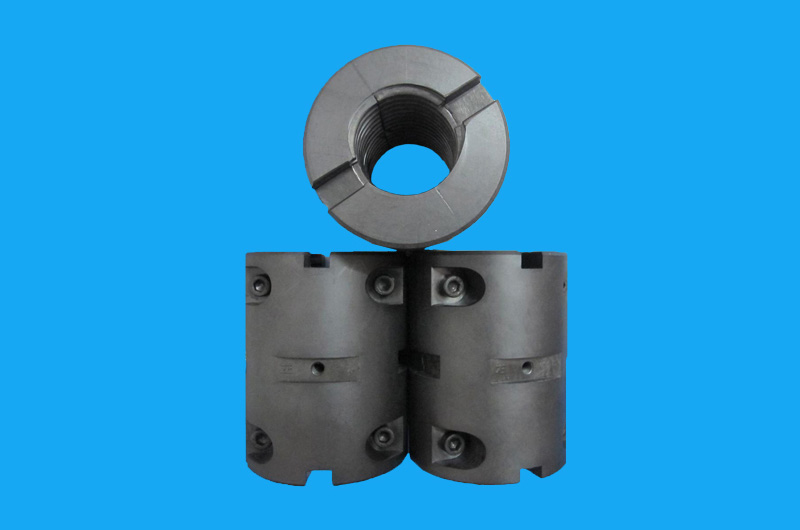

PEEK Screw Nut for Stenter Machine
  • Brief Introduction:
  • We produce the polymer PEEK material off of stereotypes AM screw adjustment nut,...
  • E-mail: chinaPEEK@chinaPEEK.com
  • Share To:
  • Inquiry Now
    • PEEK Screw Nut for Stenter Machine
    • PEEK Screw Nut for Stenter Machine
    • PEEK Screw Nut for Stenter Machine
    • PEEK Screw Nut for Stenter Machine
    • PEEK Screw Nut for Stenter Machine
    • PEEK Screw Nut for Stenter Machine
Quick Detail:

Model NO.: PEEK

Color: Gray and Yellow, Black

Water Absorption: 0.5

Continuous Use Temperature: 260

Bending Strength: 163

Rockwell Hardness: 99

Material: PEEK

Density: 1.3

Mold Shrinkage: 1.2

Pulled Intensity: 100

Lzod Impact Strength (Notched): No Break

Friction Coefficient: 0.30-0.38




We produce the polymer PEEK material off of stereotypes AM screw adjustment nut, is used to replace the traditional copper nut.
As we manufacture and repair many of our products, we offer quick delivery times and competitive prices, along with the invaluable service and support our customers have always received.
1. Working temperature: 260-340 centigrade
2. Color: White, black, natural, beige
3. Flame retardant: UL: V-0

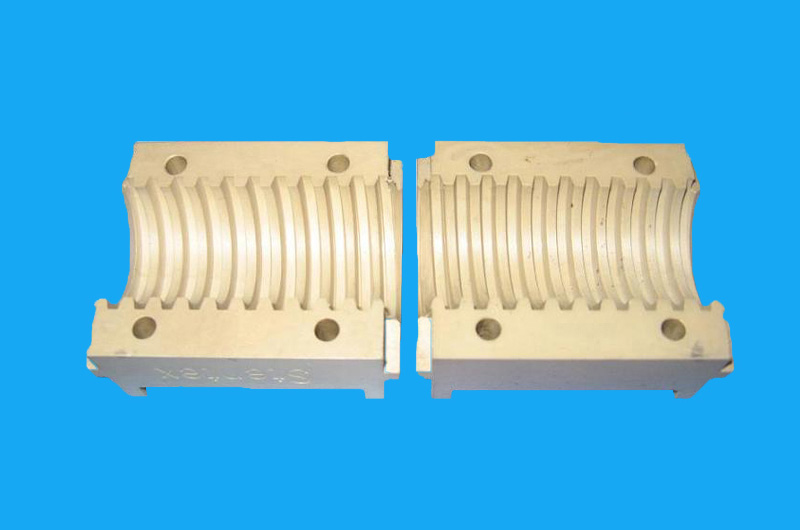

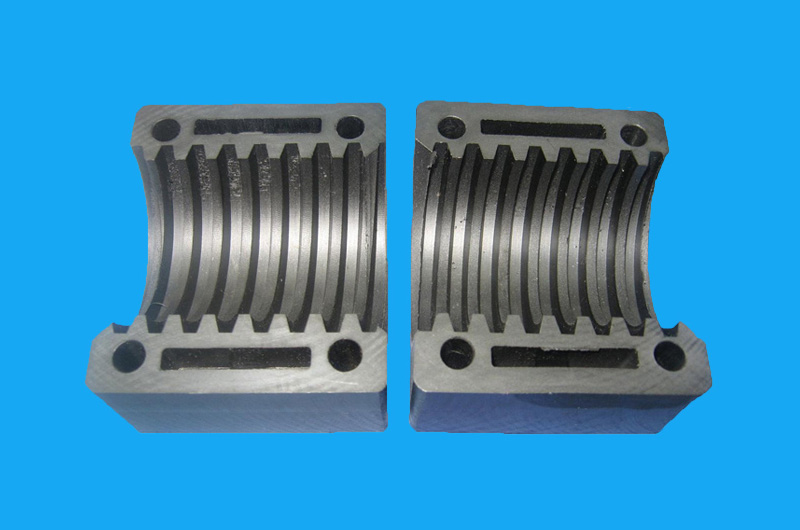

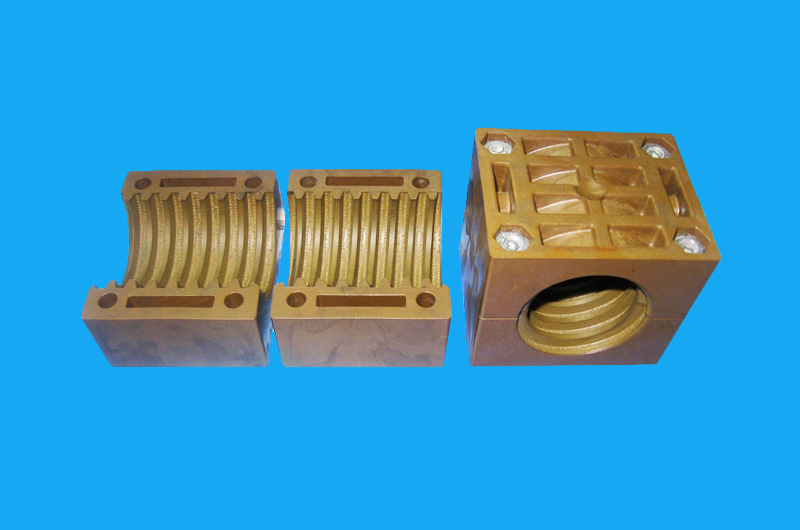

Item: Peek half nuts (for setting machine)
Material: PEEK
Color: White, black, natural, beige
Size: According to custom's requirement, drawing will be highly appreciated.
Weight: From 0.01gram to 10kgs
Tolerence: +/-0.04-0.1mm, according to requriement
Processing: Precision CNC machine or injection molding.

Properties:
Working temperature: 260-340 centigrade
Flame retadant: V-0
Excellent dimension stability
Good toughness and rigidity,
High hardness, excellent wear resistance.
Good insulation, anti-ydrolysis, radiation-resistant

Industry Application:
1. Semiconductor machinery components
2. Aerospace parts
3. Sealing part
4. Pump and valve components
5. Bearings \ bushings \Gear
6. Electrical components
7. Medical instrument parts
8. Food processing machinery components
9. Oil intrutry
10. Automatic intrutry
